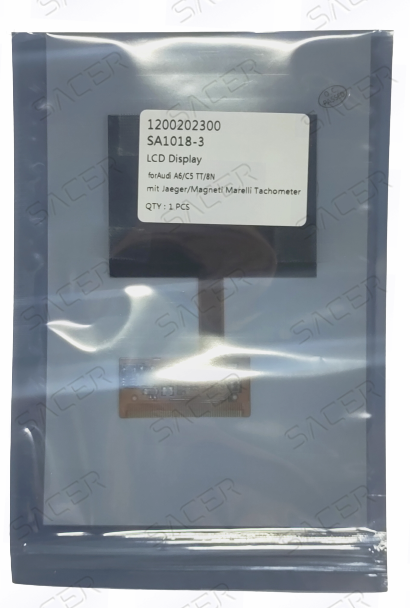

LCD DISPLAY with FPC and IC driver for Jaeger and Magneti Marelli
Application: Instrument Cluster, dashboard Model: Jaeger and Magneti Marelli Exceptions:The only different between SA1003-3 & SA1018-3 is the shape of FPC.
The Operation Temperature is -20℃ to 70℃，it is the old version of SA1018-4.
In hot summer,we suggest you can choose improve version SA1018-4.The contrat effect is better than SA1018-3.
1. Same TAB IC driver as OE. Need to clean the PIN from PCB side before soldering.
2. Normal soldering machine with very patient skills would be necessary.
3. If you could remove the OE IC driver from display well for resoldering process, Sacer could provide LCD display with FPC seperately for you.
4. Difference between SA1003-3 & SA1018-3: Same LCD display but different shape of FPC connector, compatible car models are also different.
5. 100% Brand New product and tested prior to leaving the factory.
Advantages
1. All new design, comparable to the original, perfect brightness, superior color.
2. Work well in the temperature of -20℃ to 70℃.
3. Full Function OQC test and confirm every piece is qualified.
4. Circuit protection design, 2 years European warranty.
Installation
If used in the JEAGER / MARELLI models, for soldering, as the picture shows, aligned and soldering the right pins, the left four pins do not need soldering.
/>
